Blind Spot Detection System
Overview: The Blind Spot Detection System includes a combination of advanced cameras and monitors designed to enhance vehicle safety by eliminating blind spots. This system provides superior visibility and real-time monitoring of the surroundings using multiple high-definition cameras, including the MS-788KY, MS-753HD, and MS-781HD. Each camera features cutting-edge technology to deliver crystal-clear video, even in low-light conditions, and offers features like night vision and wide viewing angles to ensure maximum safety.

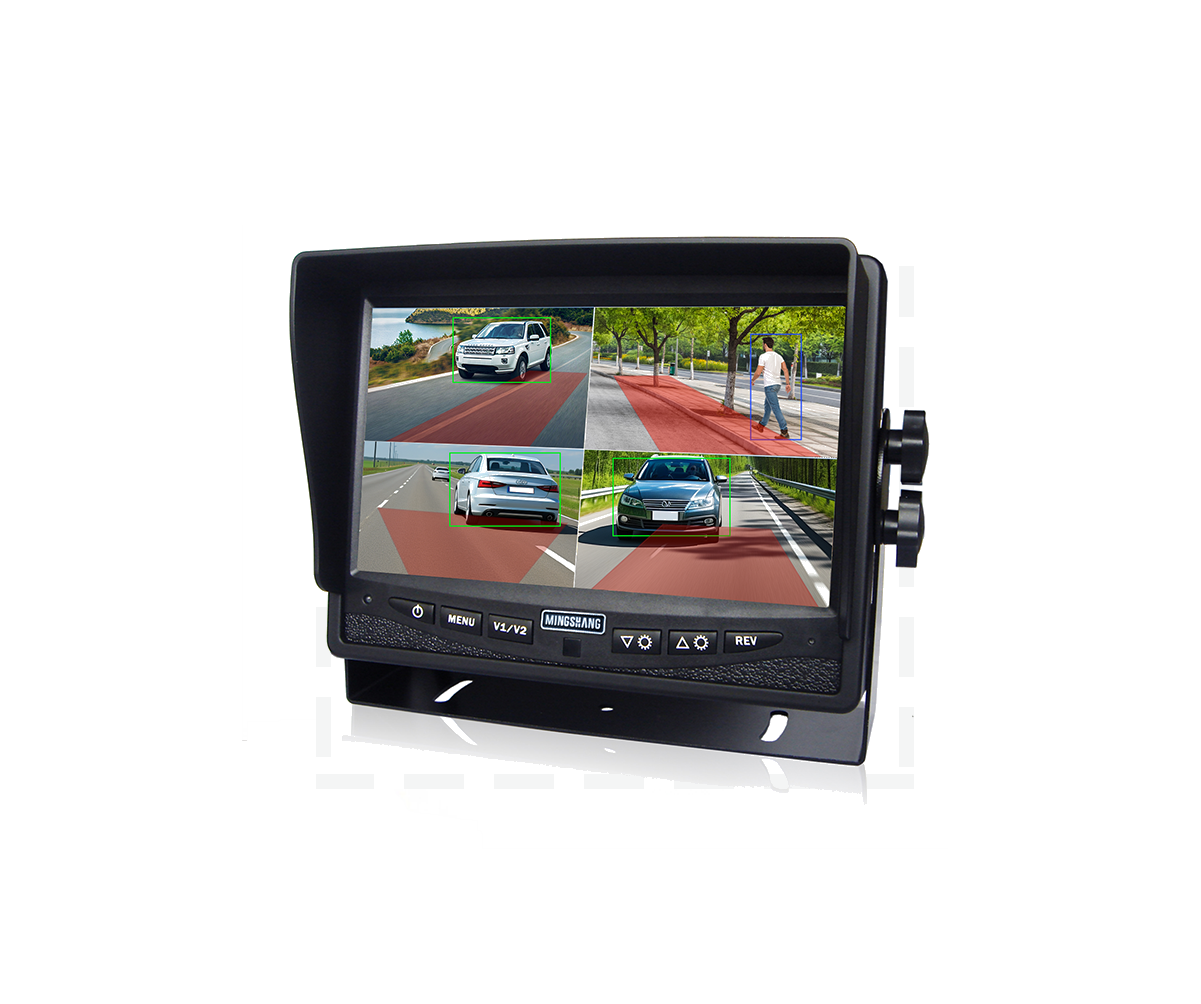

7-inch HD Monitor (MS-788KY)
| Category | Technical Parameters |
|---|---|
| Video Channels | 4 video channels |
| Picture Display Format | 16:9 |
| Quad System | Single, dual, triple, quad |
| Video System | PAL, NTSC (automatic) |
| Contrast Ratio | 500:1 |
| Brightness | 400cd/m² |
| IR Remote Control | Yes |
| Power Supply | DC 10-36V |
| 1 Channel Audio | Yes |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Working Voltage | DC 9V ~ 32V |
| Working Current | 290 mA (DC 24V) |
| Screen Size | 7 inches |
| Resolution Ratio | 1024 (RGB) * 600 |
| Contrast Ratio | 800 |
| Dot Pitch | 0.1506 (H) × 0.1432 (V) mm |
| Refresh Frequency | 50Hz (P), 60Hz (N) |
| Color Display | R.G.B. |
| Visual Angle | L: 85° R: 85° U: 85° D: 85° |

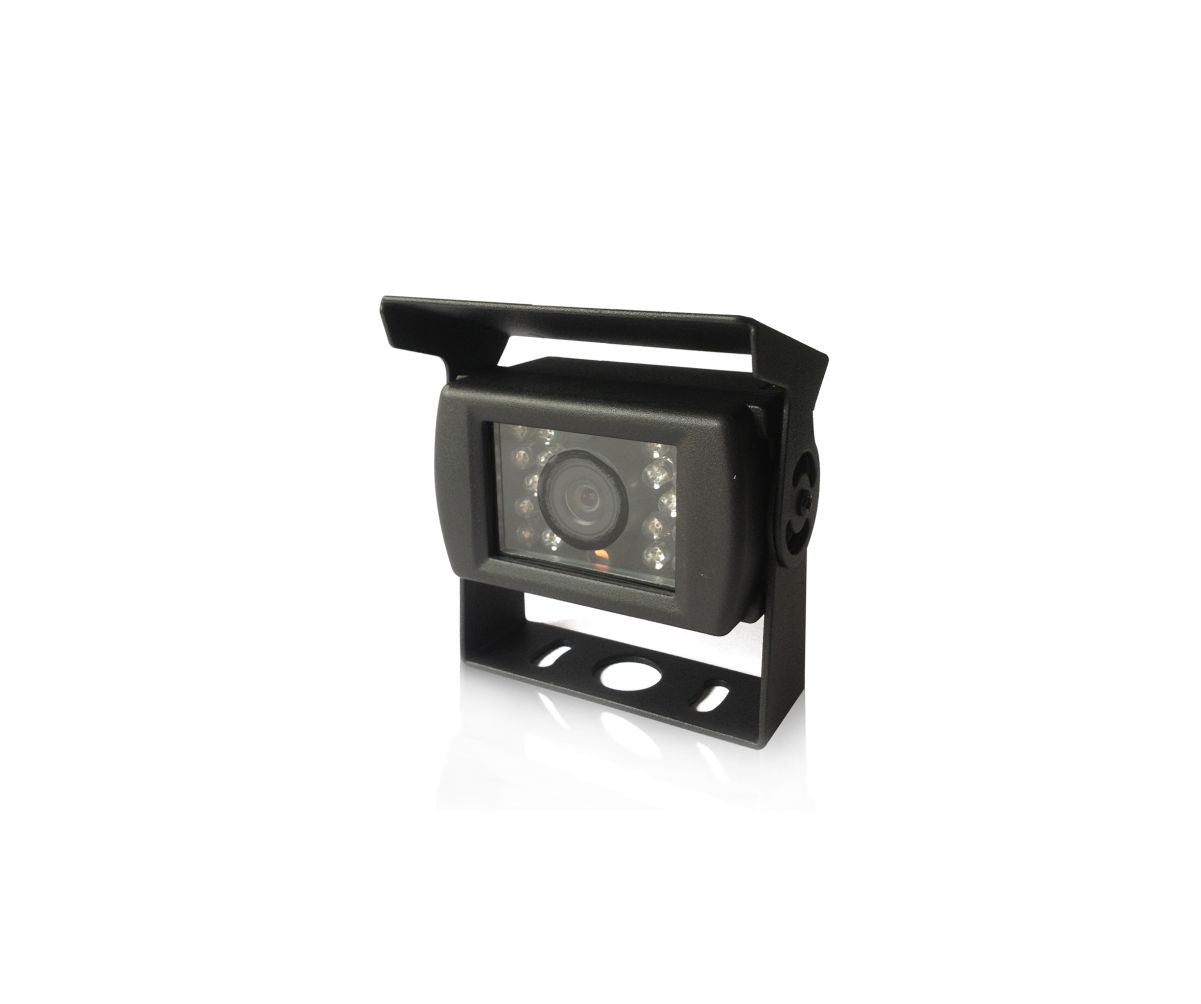

AHD Rear View Camera (MS-753HD)
| Category | Technical Parameters |
|---|---|
| Resolution | 1280(H) × 720(V) |
| Waterproof Rating | IP69K |
| Built-In Microphone | Yes |
| IR LED | 18pcs IR LED for night vision |
| Video Output | SONY IMX225 AHD |
| Format | NTSC/PAL |
| Frame Rate | 720P@25fps / 720N@30fps |
| Power Supply | DC12V(±20%) / 150mA |
| Shutter | Auto |
| Day and Night Mode | External control (default IR-cut control)/automatic/color/black and white |
| Synchronization Mode | Internal synchronization |
| Minimum Illumination | 0.005Lux@(F1.6, AGC ON), 0LUX with IR |
| Viewing Angle | 120° |
| Operating Temperature | -30°C ~ +70°C / RH 95% Max |
| Storage Temperature | -40°C ~ +80°C / RH 95% Max |
| Material | Aluminum alloy |
HD Side View Camera (MS-781HD)
| Category | Technical Parameters |
|---|---|
| Sensor Type | CMOS |
| Signal System | PAL/NTSC |
| Pixel | 1920(H) x 1080(V) |
| Resolution | 1080P |
| Minimum Illumination | 0.1Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter | 1/25 s ~ 1/50,000s |
| Lens | 2.8mm |
| Lens Type | M12 |
| Lens Angle | 150° |
| Day and Night Mode | IR CUT Switch, Black and White at Night |
| Synchronization Mode | Internal Synchronization |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Audio | Yes |
| Dynamic Range | 120dB |
| Signal to Noise Ratio | More than 48 dB |
| Power Supply | DC12V(+/-15%) |
| Waterproof | IP69 |
| Infrared Irradiation Distance | 10M |
| Power Waste | 1.3W max |
| Working Temperature | -30℃ ~ +70℃ |
