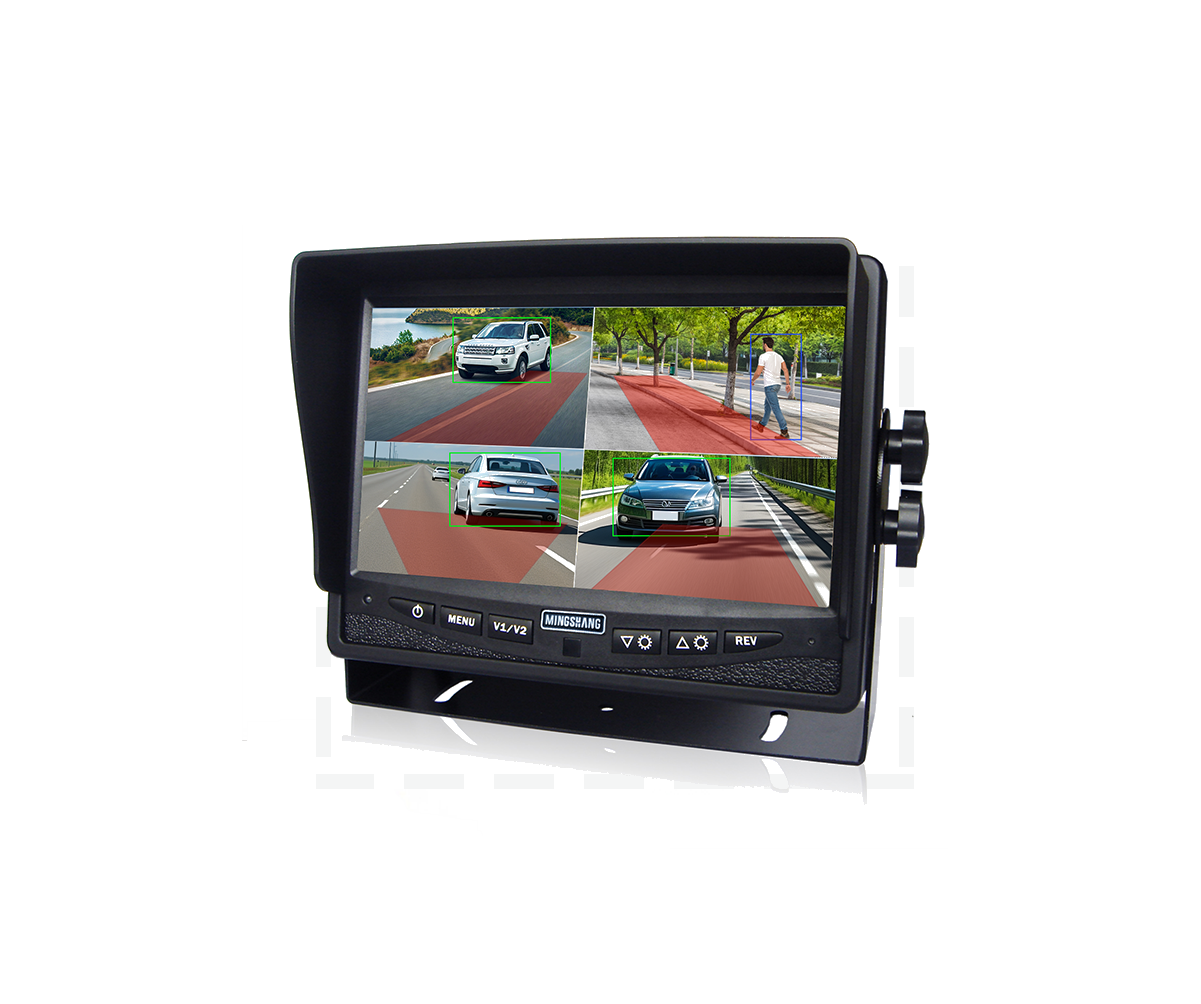

7-inch HD Monitor (MS-788KY)

Overview: The MS-788KY is a versatile 7-inch HD monitor with four video channels and multiple display options (single, dual, triple, and quad). It supports both PAL and NTSC video systems, with a high resolution of 1024x600 and a brightness of 400 cd/m² for clear and vivid images. The monitor also comes with IR remote control functionality, a wide viewing angle, and adjustable mirror function. Ideal for applications that require video monitoring, this monitor offers flexible display modes and robust performance in various environments.

7-inch HD Monitor (MS-788KY) Features
Category Technical Parameters
Video Channels 4 video channels
Picture Display Format 16:9
Quad System Single, dual, triple, quad
Video System PAL, NTSC (automatic)
Contrast Ratio 500:1
Brightness 400cd/m²
IR Remote Control Yes
Power Supply DC 10-36V
1 Channel Audio Yes
Operating Temperature -30℃ ~ +70℃
Storage Temperature -40℃ ~ +80℃
Full Image / Multiple Images Full image, 2 images, 3 images, 4 images optional
Working Voltage DC 9V ~ 32V
Working Current 290 mA (DC 24V)
Screen Size 7 inches
Resolution Ratio 1024 (RGB) * 600
Contrast Ratio 800
Dot Pitch 0.1506 (H) × 0.1432 (V) mm
Refresh Frequency 50Hz (P), 60Hz (N)
Color Display R.G.B.
Visual Angle L: 85° R: 85° U: 85° D: 85°
Video Impedance 1Vp-p 75Ω
Frame Rate 25 / 30 FPS

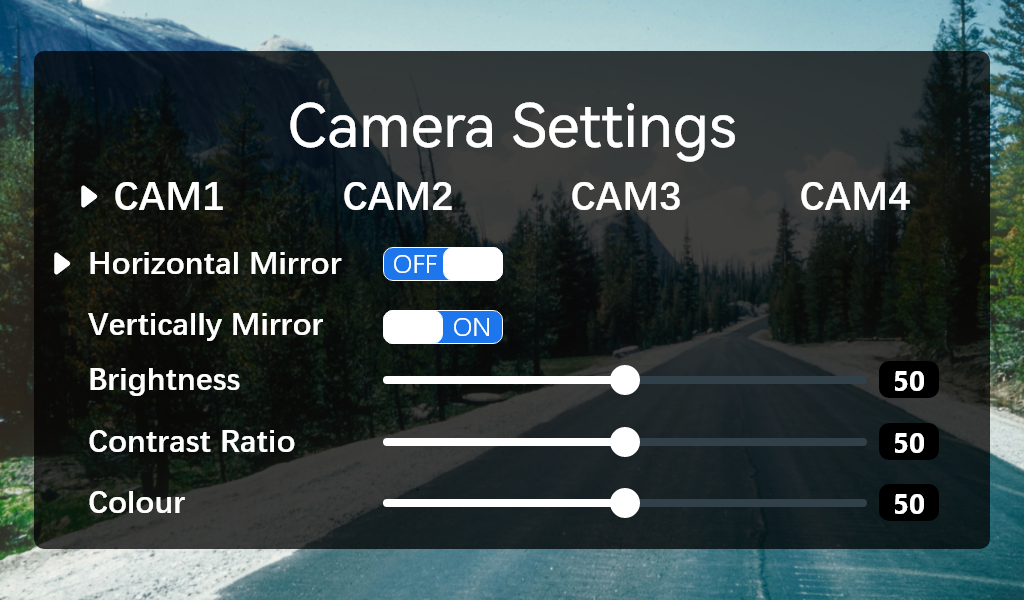

Mirror Function Support adjustable
Video Display Full, double, triple, quad screens
Trigger 3CH trigger (for rear view, left, and right)
Language OSD 7 languages (Chinese and English)
Video Input AHD/1080, AHD/720P, CVBS (support mixed)
Working Humidity 45% ~ 75%
Size 175 × 130 × 32mm (excluding sunshade)
Net Weight About 0.4kg
