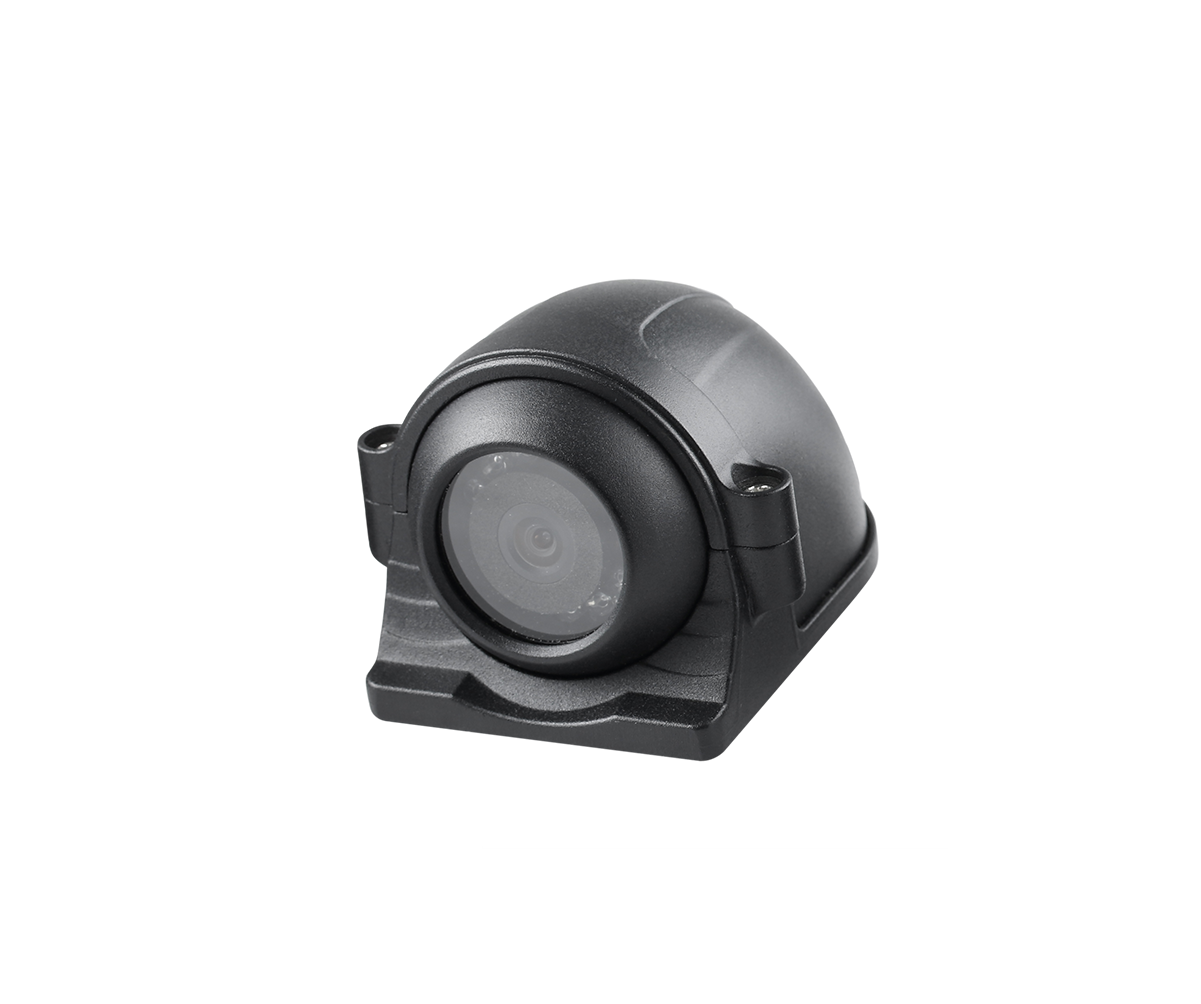

HD Side View Camera (MS-781HD)
Overview: The HD Side View Camera (MS-781HD) provides high-definition 1080P video with a wide 150° viewing angle, making it ideal for side view monitoring in vehicles. With an IP69 waterproof rating, this camera is built to withstand tough environmental conditions. It features infrared (IR) night vision with a 10-meter irradiation distance and supports both day and night conversion modes. Equipped with a high-quality CMOS sensor, the camera delivers clear images even in low light conditions, ensuring safety and visibility for drivers.
Technical Specifications
| Category | Technical Parameters |
|---|---|
| Sensor Type | CMOS |
| Signal System | PAL/NTSC |
| Pixel | 1920(H) x 1080(V) |
| Resolution | 1080P |
| Minimum Illumination | 0.1Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter | 1/25 s~ 1/50,000s |
| Lens | 2.8mm |
| Lens Type | M12 |
| Lens Angle | 150° |
| Day and Night Mode | IR CUT Switch, Black and White at Night |
| Synchronization Mode | Internal Synchronization |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Audio | Yes |
| Dynamic Range | 120dB |
| Signal to Noise Ratio | More than 48 dB |
| Power Supply | DC12V (+/-15%) |
| Waterproof | IP69 |
| Infrared Irradiation Distance | 10M |
| Power Consumption | 1.3W max |
| Operating Temperature | -30℃ ~ +70℃ |
