9″ 6CH HD AI System
Overview: The 9″ 6CH HD AI System integrates various high-performance cameras and monitors, designed to provide comprehensive surveillance and driving assistance. This system includes multiple camera types such as the HD Waterproof Side View Camera (MS-780HD), AHD Waterproof IP69K Heavy Duty Camera (MS-750HD), HD Dome Camera (MS-770AHD), HD Wide Viewing Camera with Good Night Vision (MS-316A), and the 9″ 6CH HD AI System Waterproof Monitor (MS-796RK AI), all of which work in tandem to deliver enhanced visibility, safety, and monitoring capabilities.

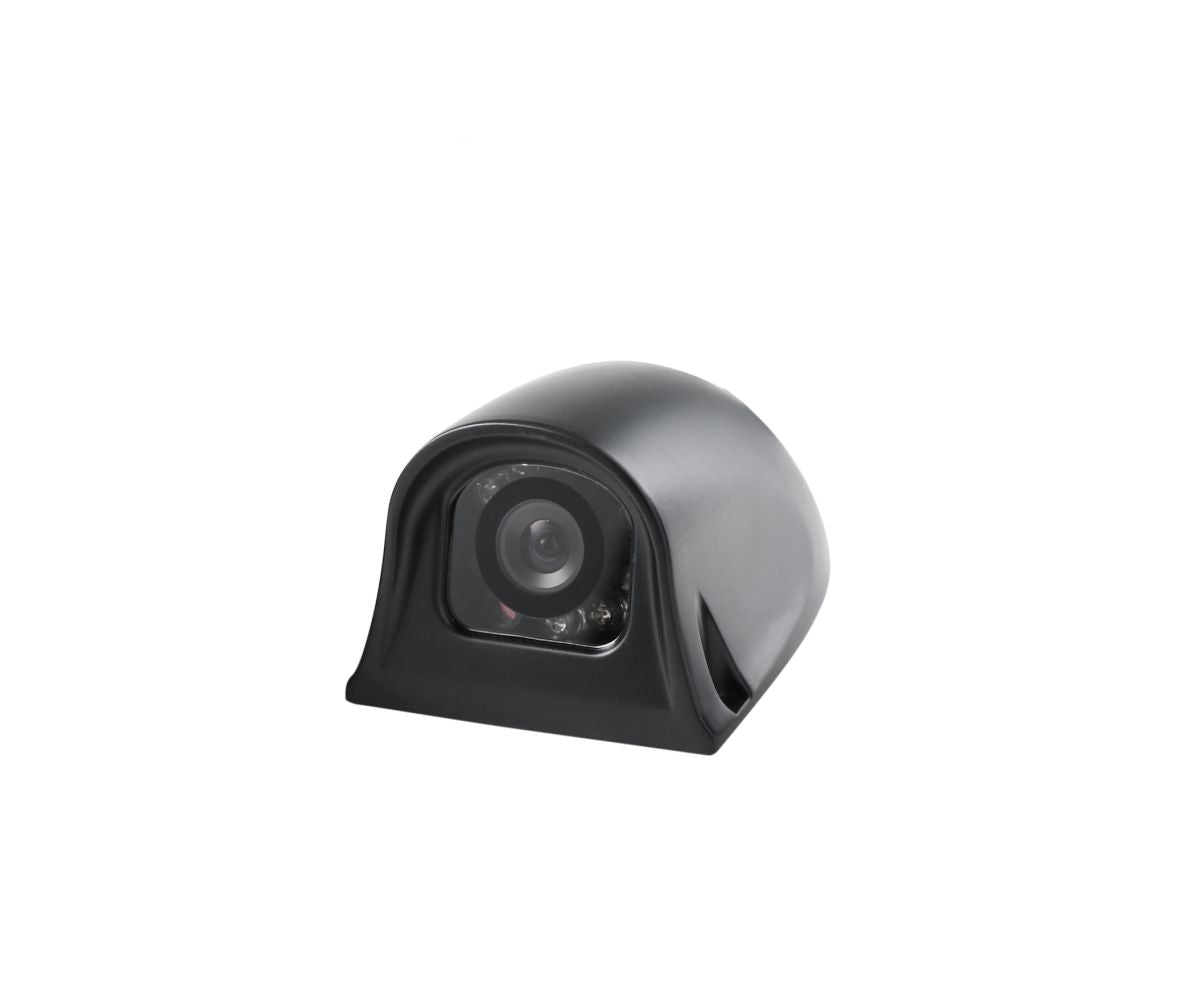

HD Waterproof Side View Camera (MS-780HD)
| Category | Technical Parameters |
|---|---|
| Sensor | 1/3″ Color CMOS Sensor |
| Pixels | 1280(H)×720(V) |
| Resolution | 600 TV Lines |
| Minimum Light | 0.01 Lux |
| Viewing Angle | 120° |
| Night Vision | 12pcs IR LED for good night vision |
| S/N Ratio | More than 48 dB |
| Video Output | 1Vp-p, 75Ω |
| Waterproof Rating | IP68 |
| Voltage | DC12V |

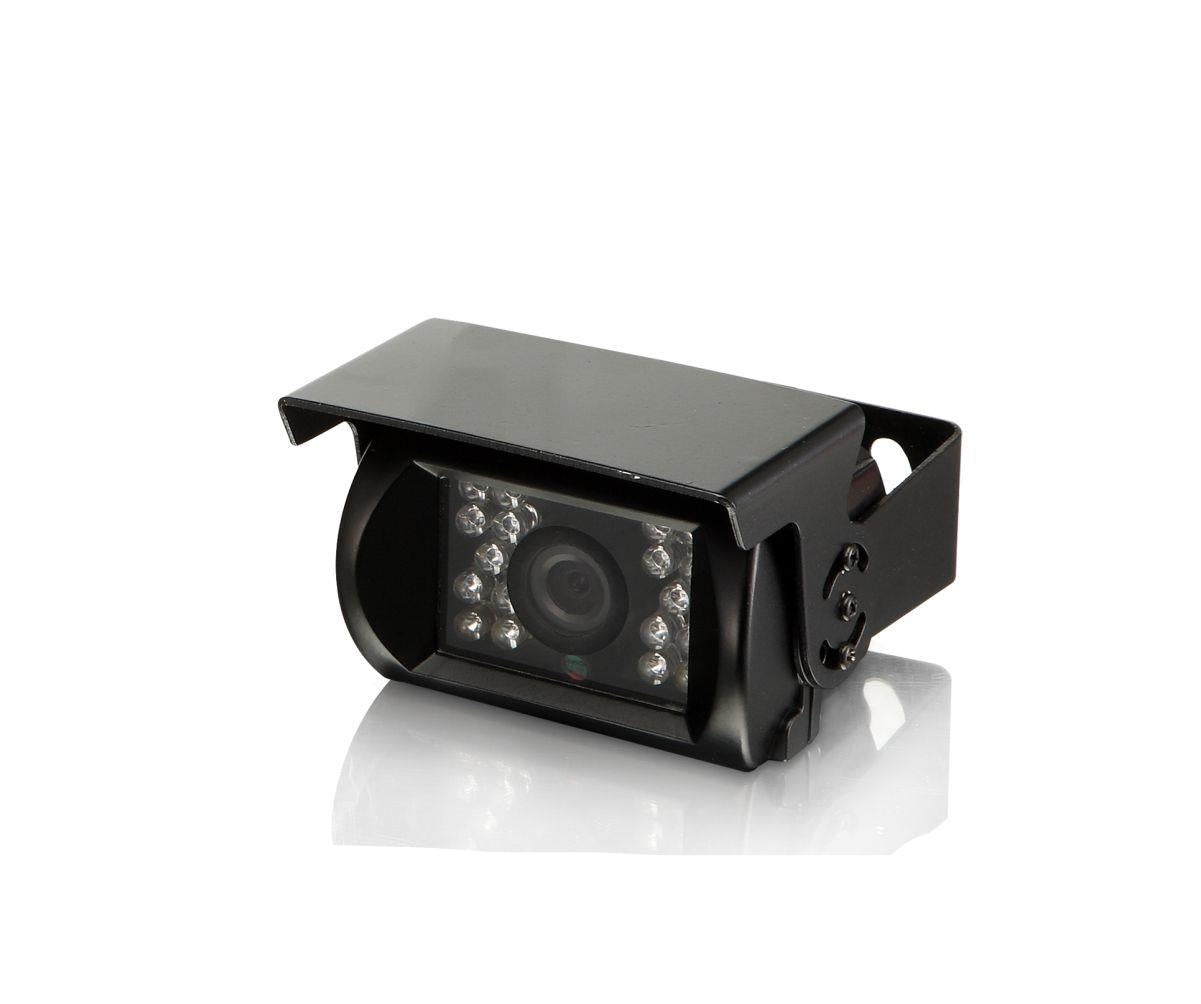

AHD Waterproof IP69K Heavy Duty Camera (MS-750HD)
| Category | Technical Parameters |
|---|---|
| LED Auto On/Off | CDS sensor |
| Video Signal System | AHD, internal |
| Waterproof Rating | IP69K |
| Effective Pixels | 1280(H) × 494(V) |
| Max Frame Rate | 1280x720@60fps |
| Resolution | 720 TV Lines |
| Minimum Light | 0 Lux (LED ON) |
| S/N Ratio | More than 50 dB |
| WDR Function | D-WDR (Wide Dynamic Range) |
| Day & Night Function | Mechanical day & night (IR filter changeable) |
| Video Output | 1.0Vp-p, 75Ω |
| Voltage | DC12V (+/-15%) |
| Power Consumption | IR ON max (180mA), IR OFF max (90mA) |
| View Angle | F2.5, 120° |
| Ambient Humidity | RH 85% max |
| IR LED | 18pcs IR LED for excellent night vision |
| Material | Zinc-alloy |

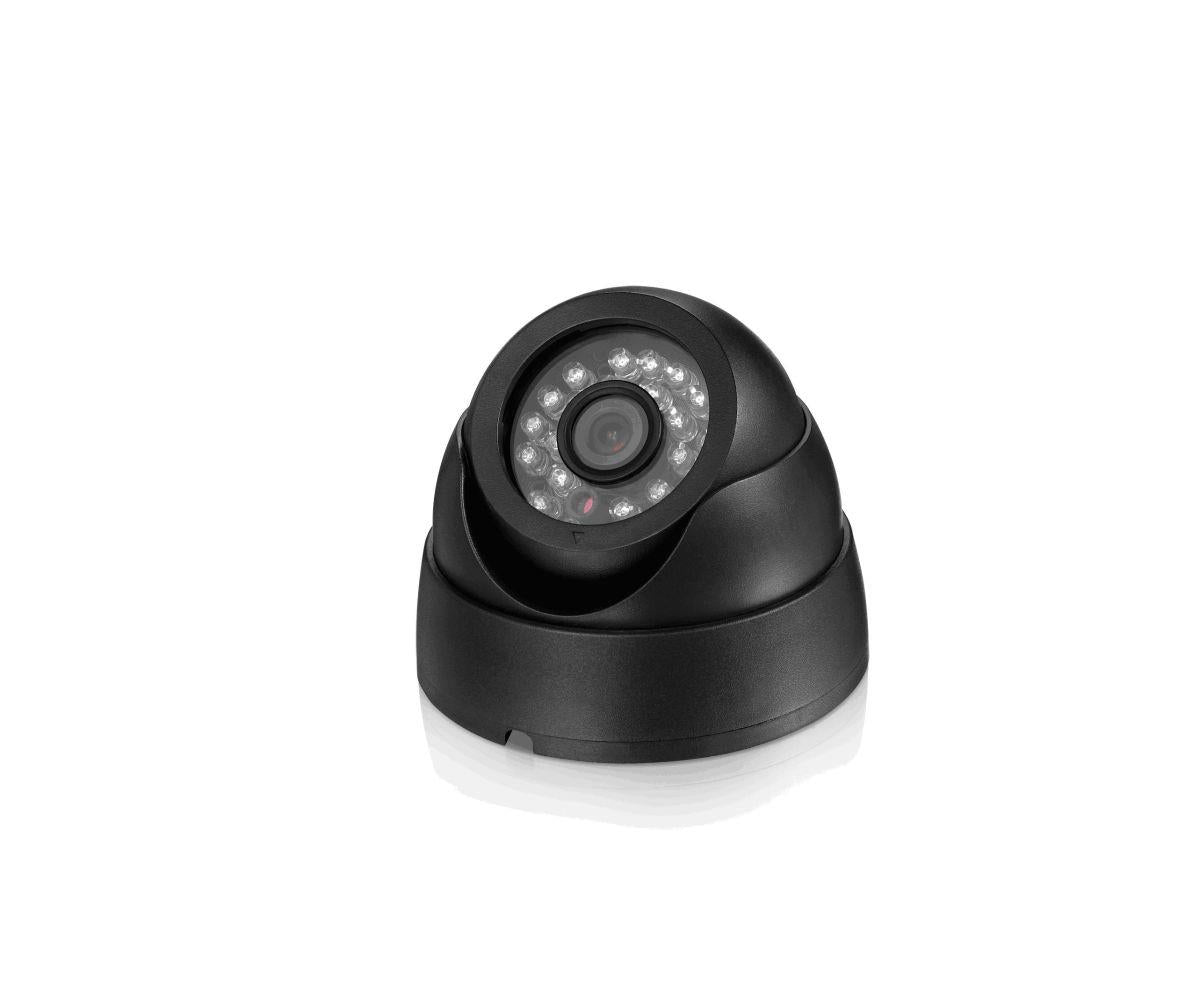

HD Dome Camera (MS-770AHD)
| Category | Technical Parameters |
|---|---|
| Sensor | Color CMOS sensor |
| WDR Function | Wide Dynamic Range (WDR) |
| Resolution | High-resolution 720P |
| LED Auto On/Off | CDS sensor |
| Day & Night Function | True day & night (IR filter changeable) |
| IR LED | 24pcs IR LED light for excellent night view |
| Effective Pixels | 1280(H) x 720(V) |
| Video Signal System | AHD |
| Viewing Angle | 90° |
| Power Input | DC12V |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Built-in Microphone | Supports audio |
| Rotation | 360° swivel casing |
| Use Case | Perfect for indoor and surveillance purposes |
HD Wide Viewing Camera with Good Night Vision (MS-316A)
| Category | Technical Parameters |
|---|---|
| Effective Pixel | 720P |
| Format | NTSC/PAL |
| Viewing Angle | 150° |
| Resolution | 1280(H) x 728(V) |
| Waterproof Rating | IP68 |
| Minimum Light | 0.2 Lux (LED ON) |
| Voltage | DC12V (+/-10%) |
| White Balance | Automatic |
| Video Output | 1Vp-p, 75Ω |
| Material | Zinc-alloy |
| Size | 90*50*43mm |

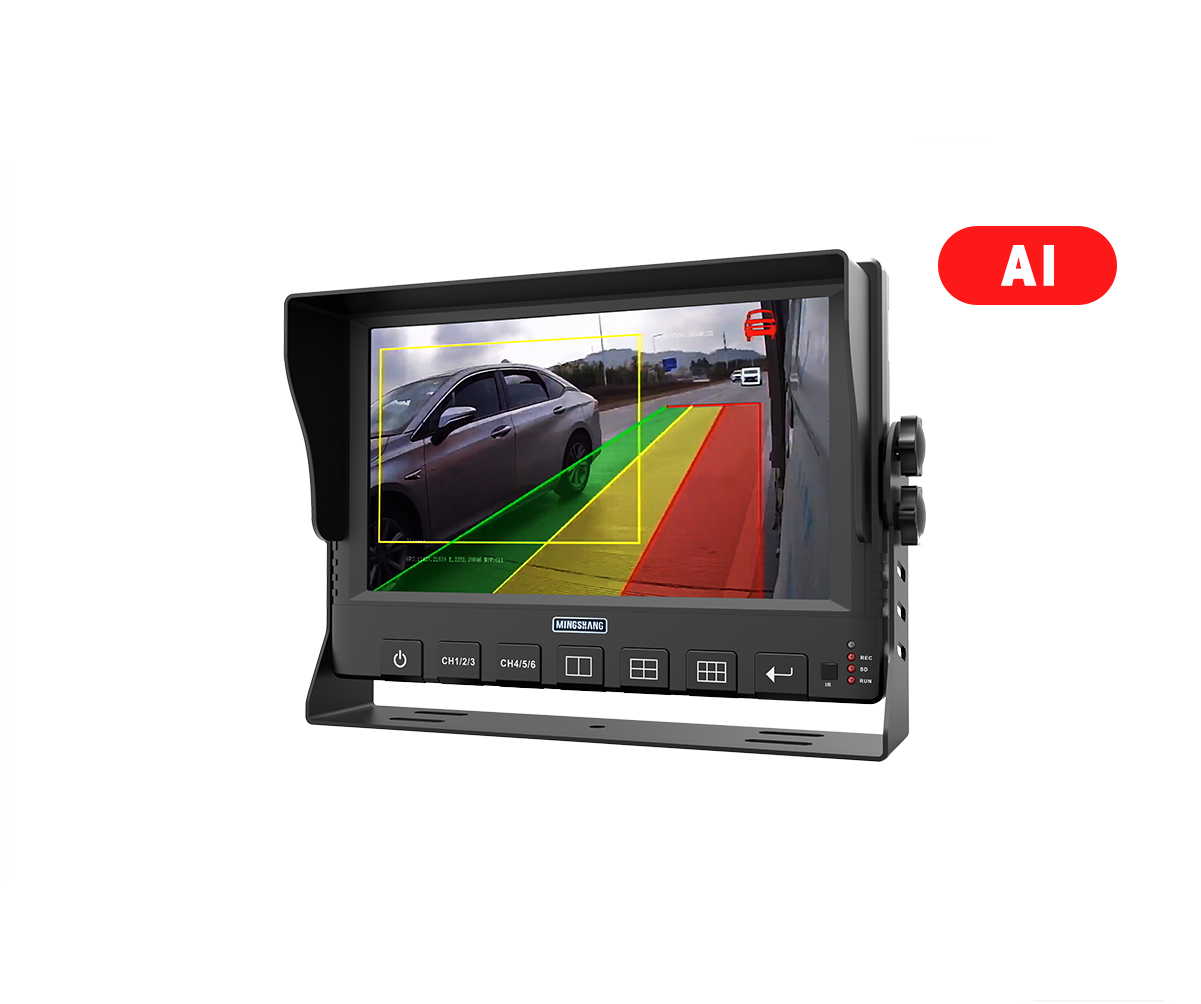

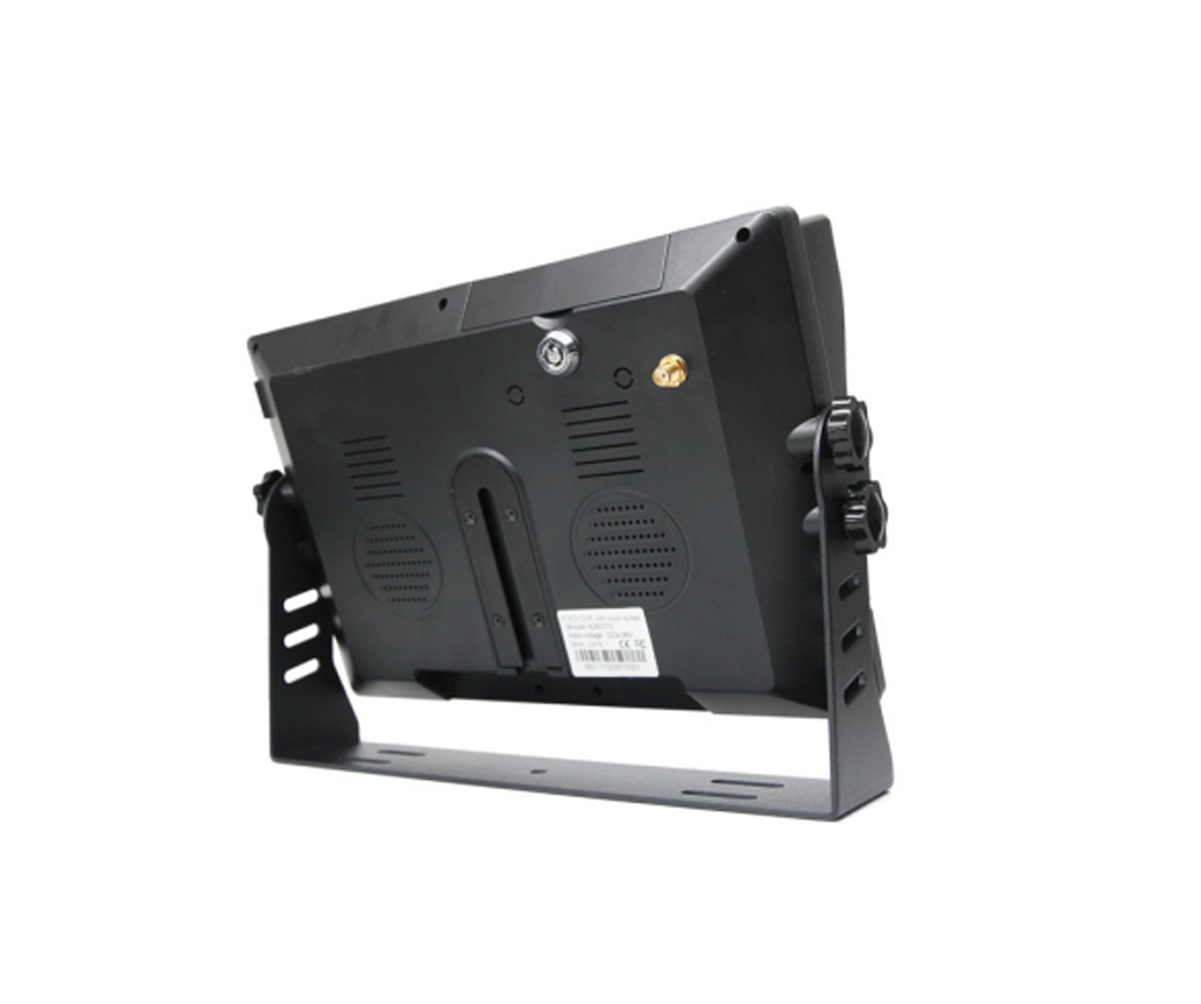

9″ 6CH HD AI System Waterproof Monitor (MS-796RK AI)
| Category | Technical Parameters |
|---|---|
| Display | 9″ TFT LED, 16:9 |
| Resolution | 1280×720 |
| Video Channels | 4 channels |
| Video System | PAL, NTSC (automatic) |
| IR Remote Control | Yes |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Power Supply | DC10-36V |
| Display Type | Full, double, triple, and quad screen options |
| Audio | 1-channel audio |
| Trigger | 3CH trigger for rear view, left and right |
