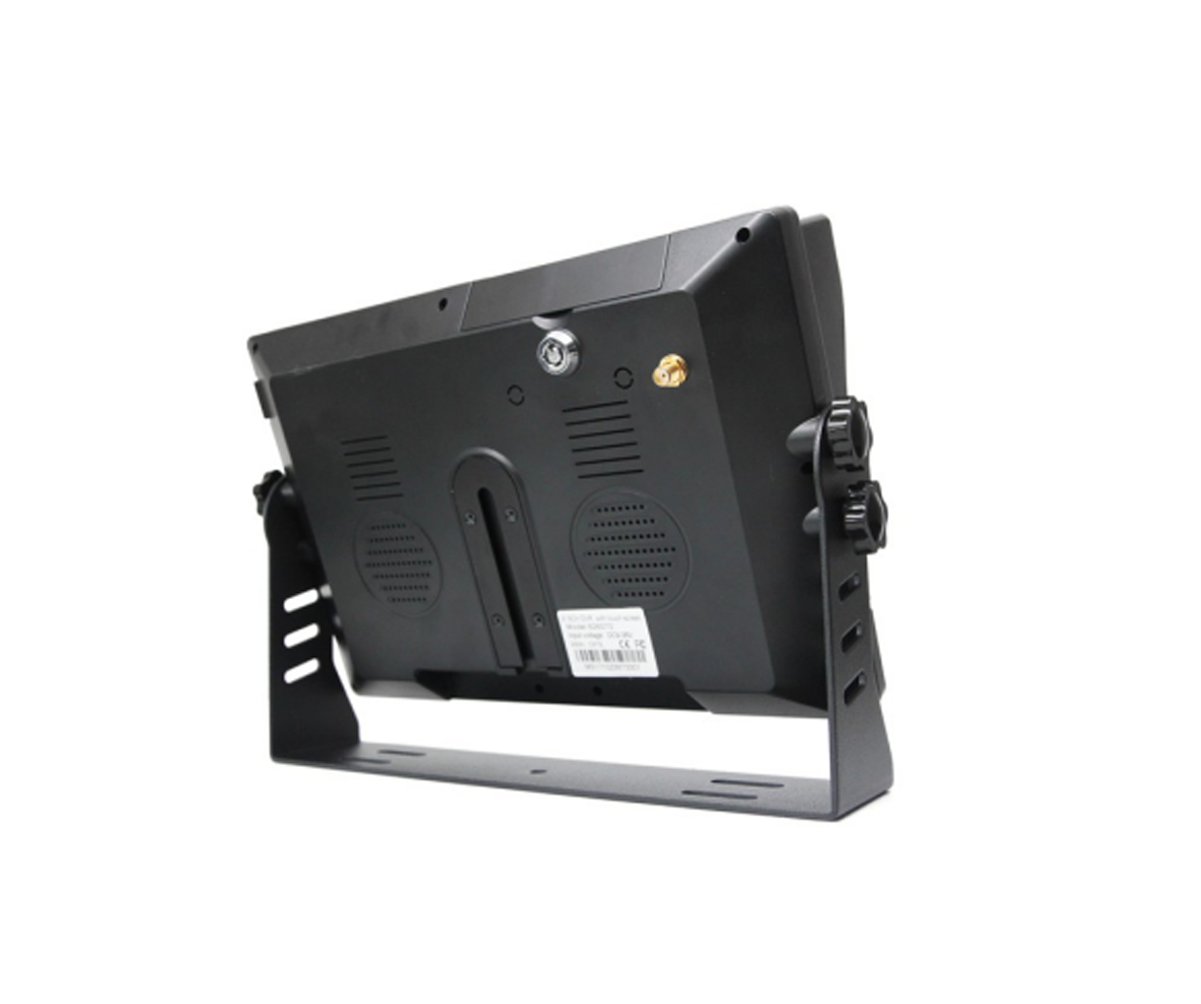

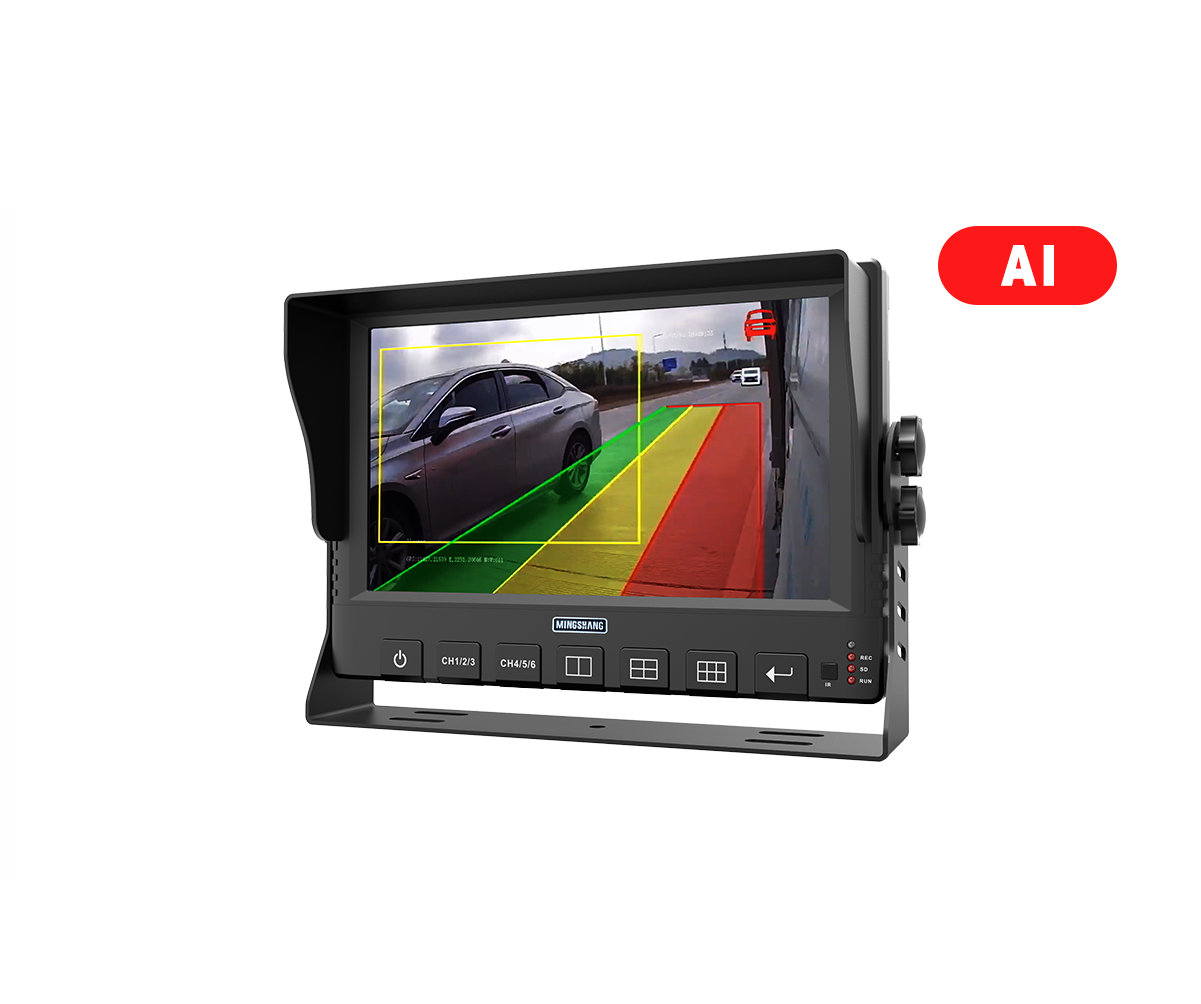

9″ 6CH HD AI System Waterproof Monitor (MS-796RK AI)
Overview: The 796RK is a 4G-connected terminal product designed for commercial vehicle applications. This system integrates video monitoring, recording storage, and display into one device, using advanced H.264/H.265 video compression/decompression technology. It also supports mobile network and positioning technology for real-time monitoring of vehicle and driver status. The system helps in preventing fatigue driving, speeding, and reduces accident hazards by offering features like remote management, driving behavior analysis, and dangerous driving behavior warnings. It provides a comprehensive solution for vehicle safety, with AI-powered functions and seamless wireless data uploading.
| Category | Project | Technical Parameters |
|---|---|---|
| Basic Characteristics | Operating System | Linux system |
| Screen Size | 9″ TFT LED, 16:9 | |
| Resolution | 1280*720 | |
| Languages | Chinese, English, French, Russian | |
| Password Security | Two levels of confidentiality management for user and admin passwords | |
| Operation Interface | OSD Touch & Mouse & Button | |
| Power On/Off | Turn on in 16 seconds with adjustable delay shutdown | |
| Audio & Video | Audio & Video Input | 6-way AHD 1VP-P 75 Ω |
| Video Compression | H.264, H.265 | |
| Video Standards | PAL: 25fps / NTSC: 30fps | |
| Video Playback | Support search and playback by time, date, event, and alarm | |
| Display Control | Single, 2-way, 4-way, 6-way split display, switchable | |
| Trigger Control | 6-way video trigger control | |
| Output Regulation | Display height, contrast, saturation, and volume adjustment | |
| Communication | G-Sensor | Supported with adjustable sensitivity for X/Y/Z perception |
| GPS | Built-in “GPS & Beidou” (customizable) | |
| 3G/4G | Customizable | |
| WIFI | Customizable | |
| External Interface | USB Interface | Supports USB upgrade, backup, and mouse operation |
| Video Interface | GX12-4 aviation connector | |
| IO Port | High-level trigger*6 | |
| Electrical Characteristics | Input Voltage | DC 9-36V |
| Output Voltage | DC 12V | |
| Whole Machine Power | ≤20W | |
| Trustworthiness | Working Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Size | Dimensions | L×W×H: 236×164×73(mm) |
| Net Weight | 1.6 kg |
