7 INCH Rear View Camera System

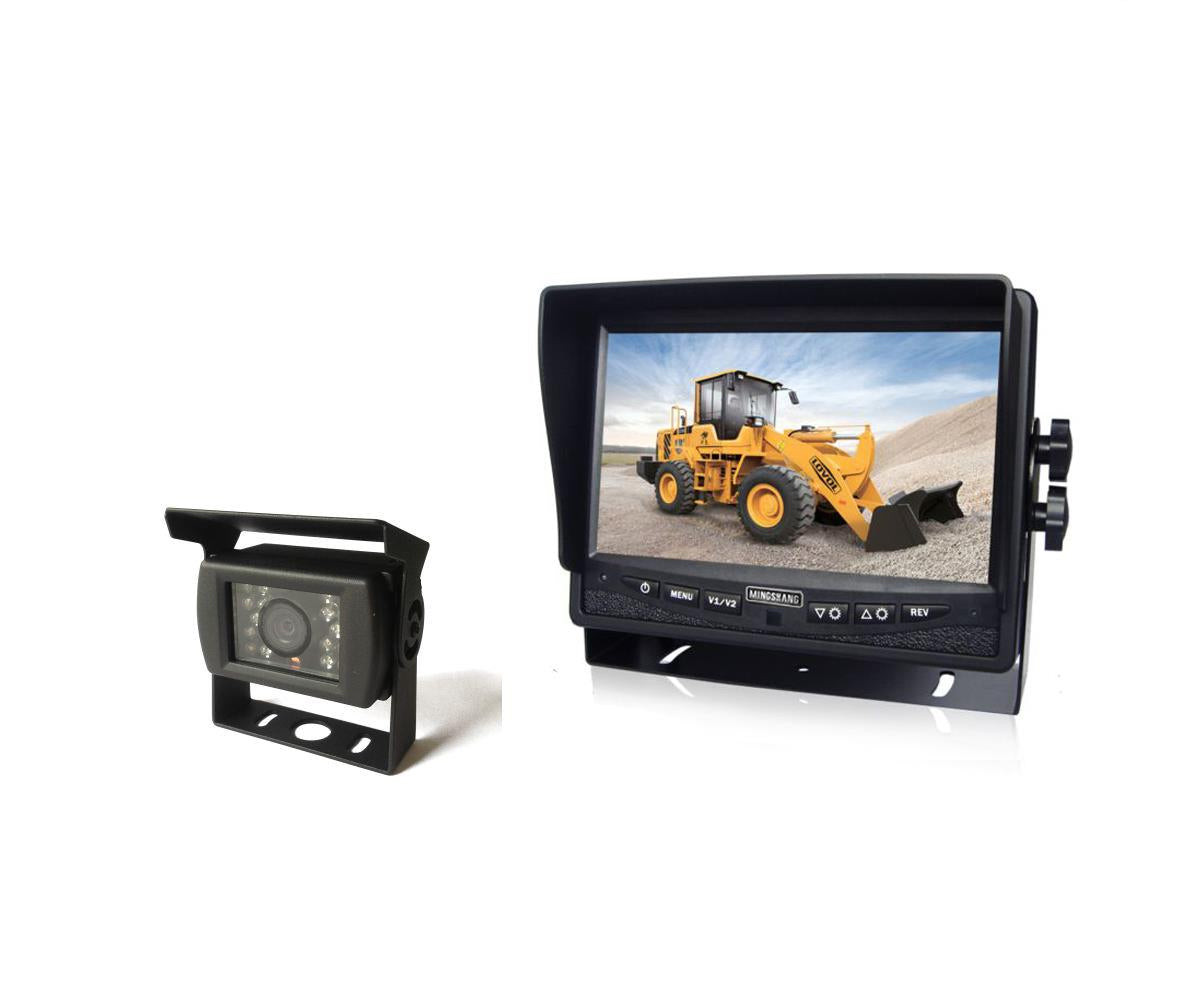

Overview: The 7 INCH Rear View Camera System integrates high-definition monitors and cameras to provide clear and reliable video surveillance for vehicles. This system includes the **MS-708RSCHD** and **MS-705RSC** models, both featuring 7-inch TFT LCD monitors, adjustable video input options, and robust waterproof CCD cameras designed for safe driving and parking assistance. The system ensures excellent visibility, night vision, and durability under extreme conditions.
7 INCH Rear View Camera System Features
| Category | Technical Parameters |
|---|---|
| Picture Display Format | 16:9 |
| Resolution | 1024*3(RGB)*600 |
| Video System | PAL / NTSC automatically |
| Contrast | 450:1 |
| Brightness | 400cd/m² |
| Field of View | Top 85° / Bottom 85° / Left 85° / Right 85° |
| Dimmer | Automatic by CDS sensor or manual adjust |
| Video Input | 4CH 720P |
| Audio Input | 0.5W speaker |
| Impact Rating | 6G |
| Image Rotation | Up/down |
| Power Input | DC10-36V, automatic power on/off by ACC |
| Sunshade & Bracket | With sunshade & optional bracket |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Weight | 450g / 0.99lbs |
| Waterproof Rating | IP69K |
| Night Vision | Yes, with infrared LED |
| Shock Resistance | Built to withstand industrial shock and vibration |
| Video Output | 1Vp-p 75Ω |

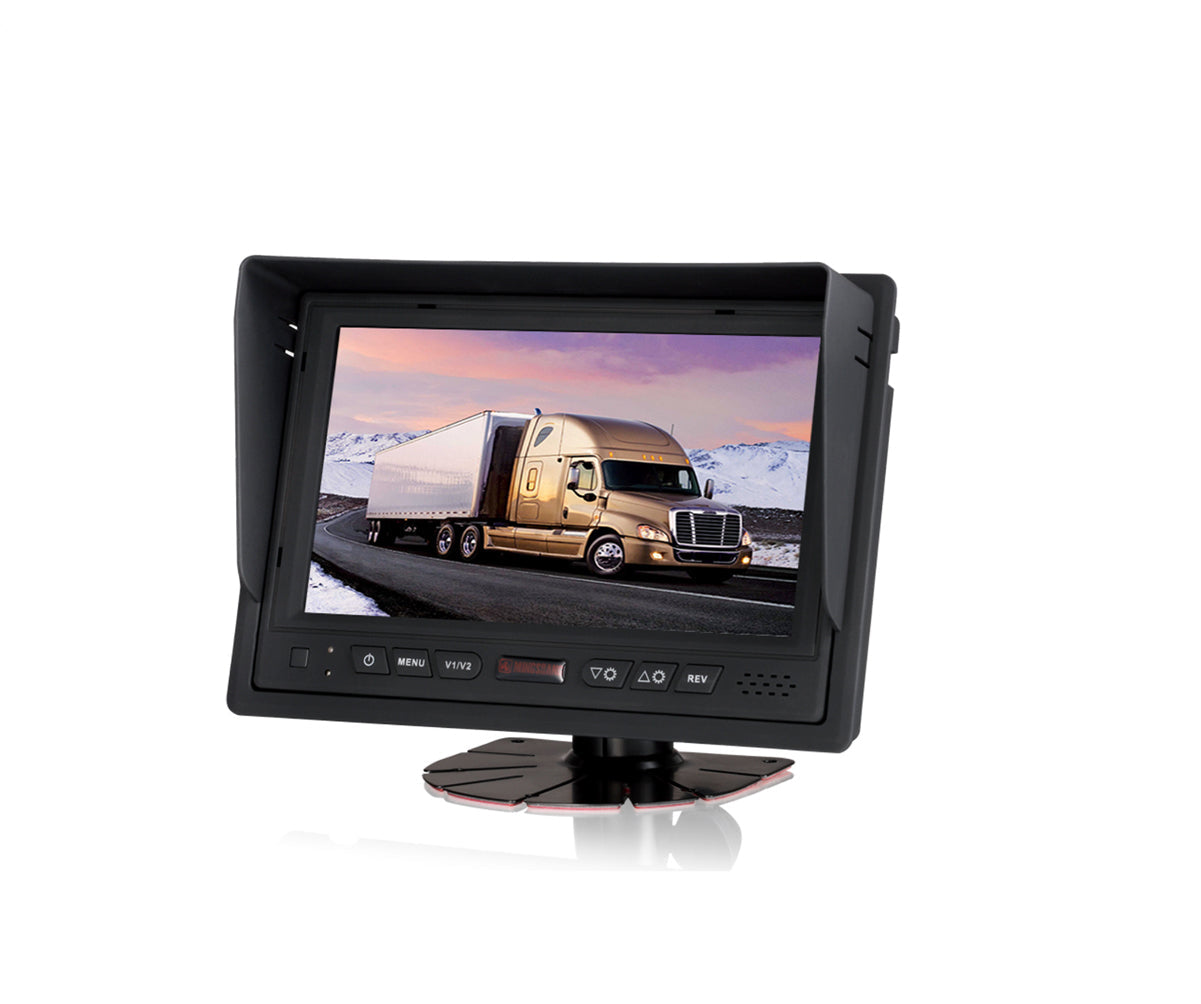

7" HD TFT LCD Monitor (MS-708RSCHD)
| Category | Technical Parameters |
|---|---|
| Picture Display Format | 16:9 |
| Resolution | 1024*3(RGB)*600 |
| Video System | PAL / NTSC automatically |
| Contrast | 450:1 |
| Brightness | 400cd/m² |
| Field of View | Top 85° / Bottom 85° / Left 85° / Right 85° |
| Dimmer | Automatic by CDS sensor or manual adjust |
| Video Input | 4CH 720P |
| Audio Input | 0.5W speaker |
| Impact Rating | 6G |
| Image Rotation | Up/down |
| Power Input | DC10-36V, automatic power on/off by ACC |
| Sunshade & Bracket | With sunshade & optional bracket |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Weight | 450g / 0.99lbs |
