7 Inch HD Rear View Camera System (MS-705RSCHD)

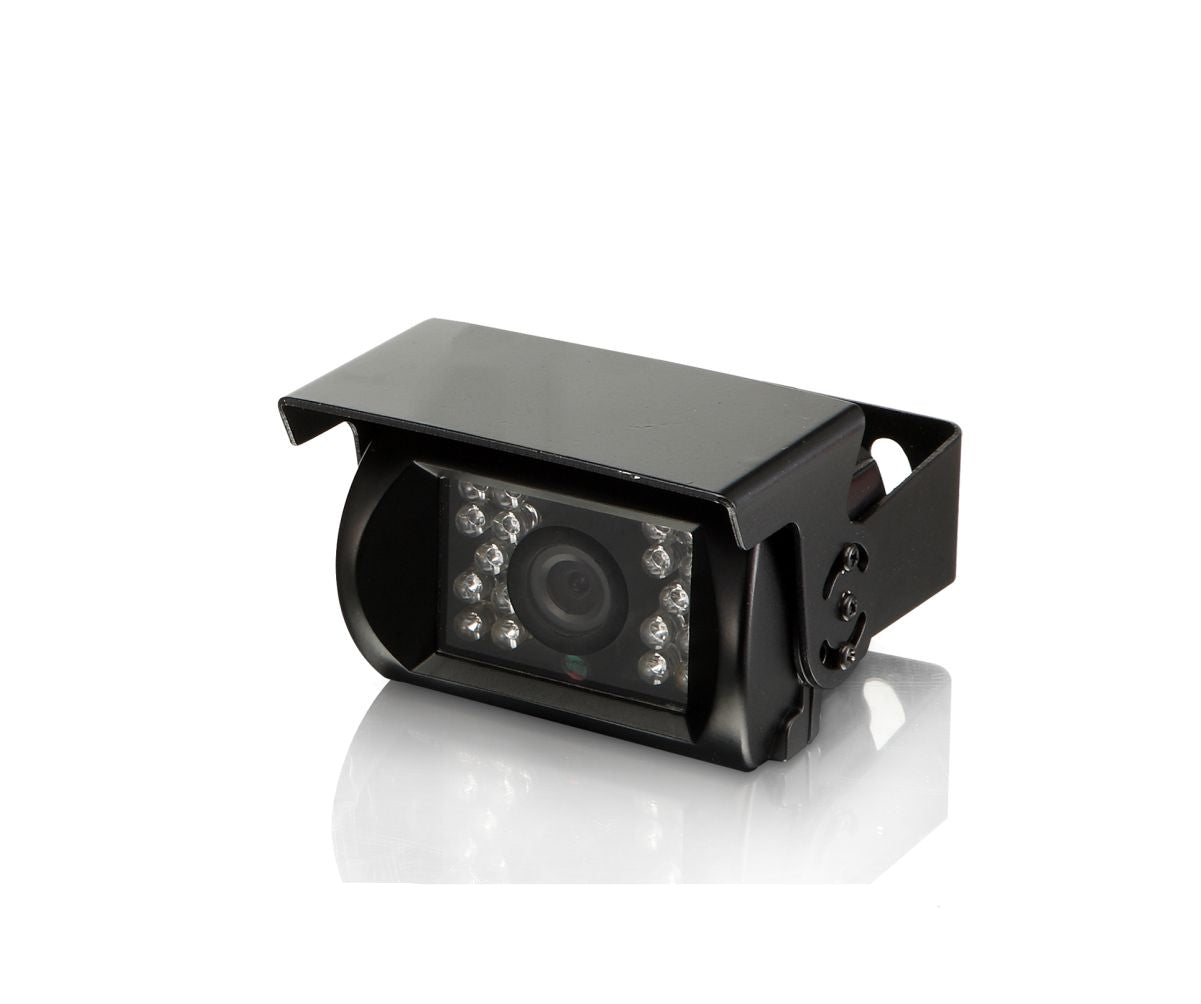

Overview: The 7 Inch HD Rear View Camera System (MS-705RSCHD) offers high-definition video monitoring with its 7-inch HD TFT LCD monitor and CCD IR camera. This system provides multiple installation options, IP69K waterproofing, and excellent night vision capabilities. It features an easy-to-use interface with 8 language selections and is built for industrial applications with robust shock and vibration resistance. It ensures that the vehicle’s surroundings are always clearly visible for enhanced safety.
7 Inch HD Rear View Camera System (MS-705RSCHD) Features
| Category | Technical Parameters |
|---|---|
| Picture Display Format | 16:9 |
| Resolution | 1024*3(RGB)*600 |
| Video System | PAL / NTSC automatically |
| Contrast | 450:1 |
| Brightness | 400cd/m² |
| Field of View | Top 85° / Bottom 85° / Left 85° / Right 85° |
| Dimmer | Automatic by CDS sensor or manual adjust |
| Video Input | 4CH 720P |
| Audio Input | 0.5W speaker |
| Impact Rating | 6G |
| Image Rotation | Up/down |
| Power Input | DC10-36V, automatic power on/off by ACC |
| Sunshade & Bracket | With sunshade & optional bracket |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Weight | 450g / 0.99lbs |

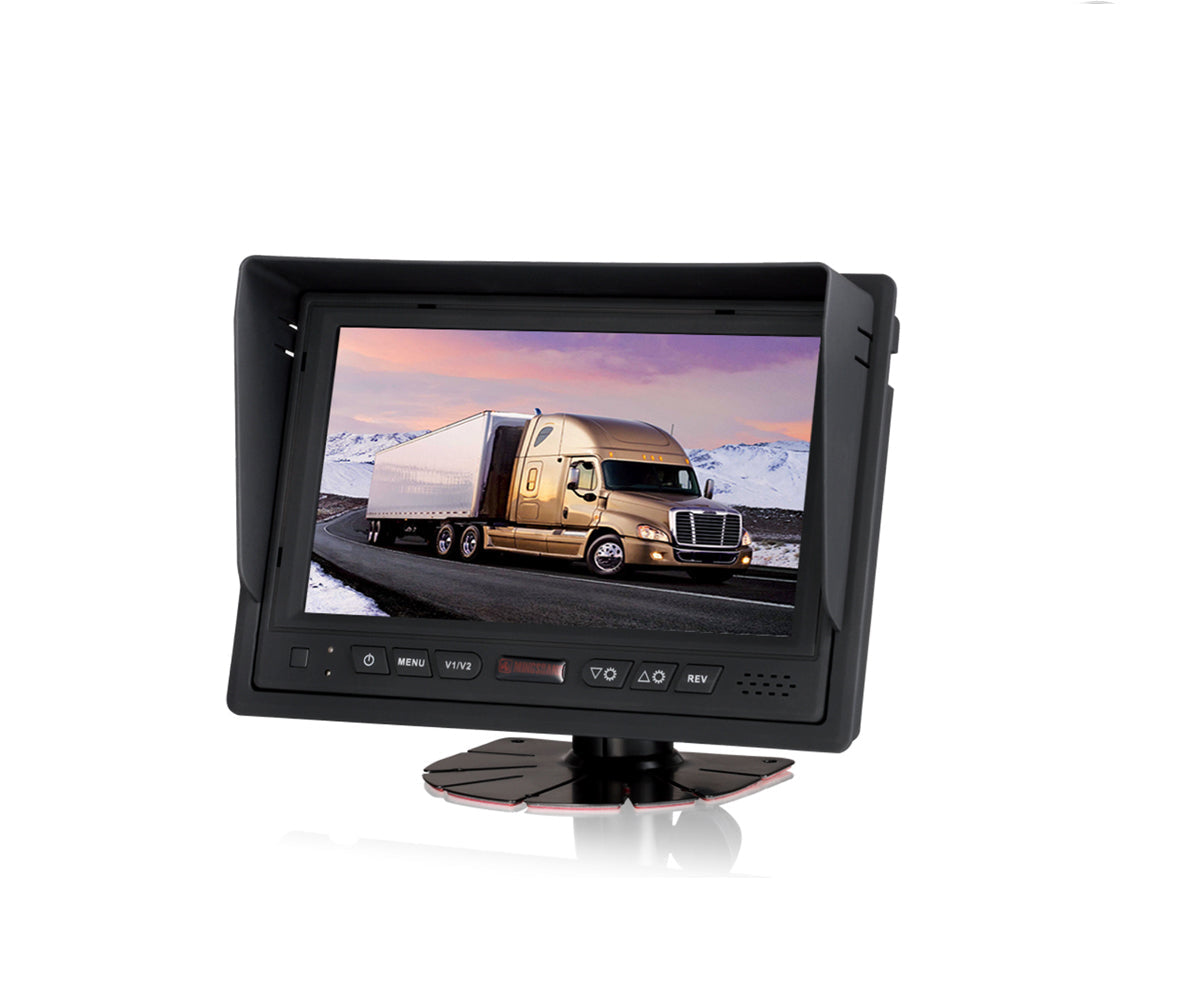

7" HD TFT LCD Monitor (MS-705)
| Category | Technical Parameters |
|---|---|
| Picture Display Format | 16:9 |
| Resolution | 1024*3(RGB)*600 |
| Video System | PAL / NTSC automatically |
| Contrast | 450:1 |
| Brightness | 400cd/m² |
| Field of View | Top 85° / Bottom 85° / Left 85° / Right 85° |
| Dimmer | Automatic by CDS sensor or manual adjust |
| Video Input | 4CH 720P |
| Audio Input | 0.5W speaker |
| Impact Rating | 6G |
| Image Rotation | Up/down |
| Power Input | DC10-36V, automatic power on/off by ACC |
| Sunshade & Bracket | With sunshade & optional bracket |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Weight | 450g / 0.99lbs |
