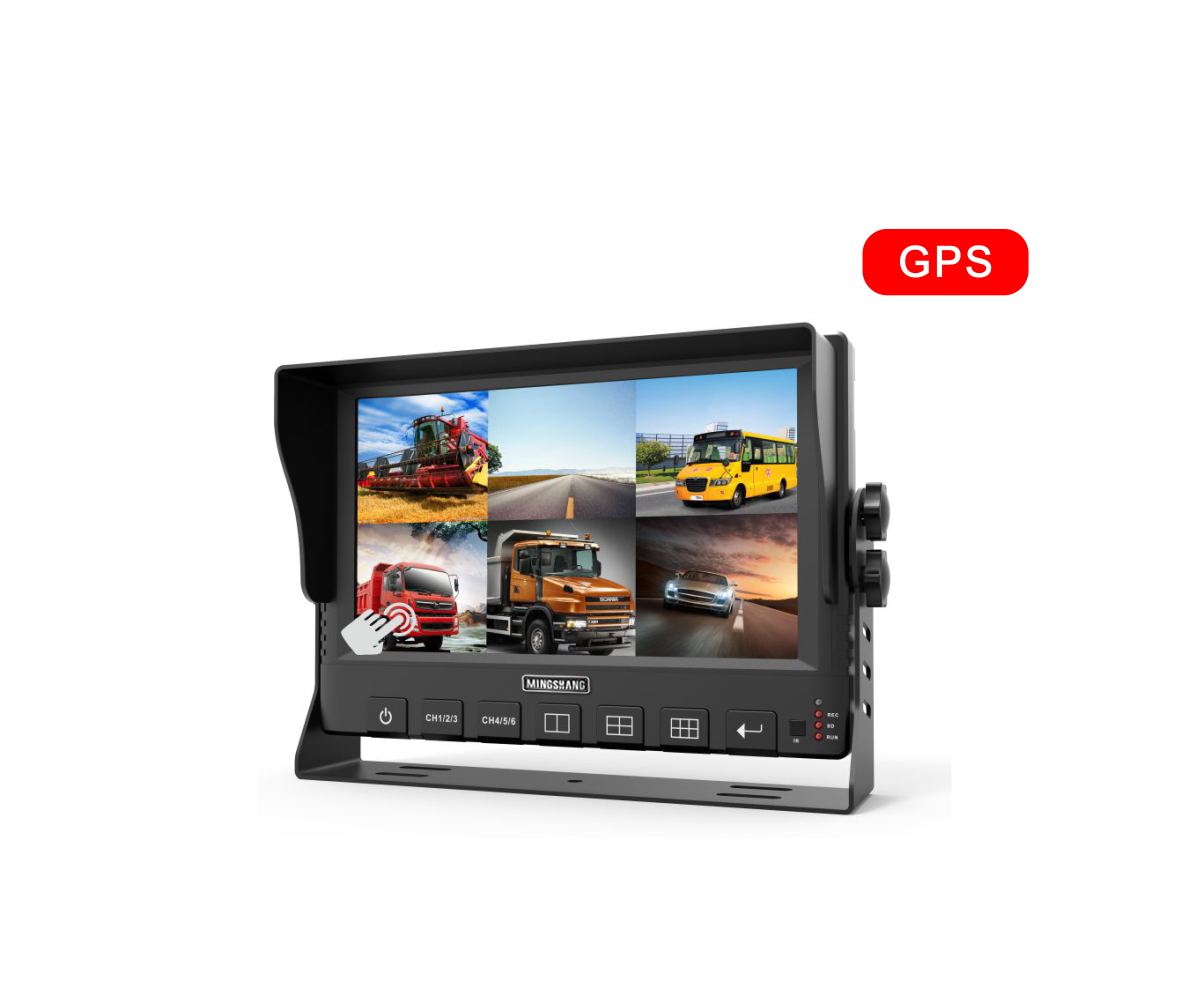

9 Inch 6CH DVR Monitor (MS-796DVR)
Overview: The **9 Inch 6CH DVR Monitor (MS-796DVR)** is designed to provide high-definition video monitoring with support for up to **6 channels of video input**. It includes a **Linux operating system** and supports a **wide range of connectivity options** such as **SD memory storage**, **GPS**, **3G/4G**, **Wi-Fi**, and more. The system offers **1080P video quality** and is ideal for vehicle surveillance applications, providing a robust solution for real-time video and data tracking.
Technical Specifications
| Category | Technical Parameters |
|---|---|
| Operating System | Linux |
| Touch Screen | Optional |
| Storage Support | 2xSD memory storage (Max. 256GB), SSD support (optional) |
| GPS | Built-in GPS module |
| Video Resolution | 1,280 x 3(RGB) x 720 Pixels |
| Video Quality | Up to 1080P resolution |
| Video Input | Supports 6CH video input, audio input on/off |
| External Interface | USB2.0 for upgrading and file downloads |
| Video Modes | Manual, alarm, timing, trigger |
| Additional Inputs | Additional 4CH inputs with triggers |
| Display Options | Full CH, Auto Scan, Trigger CH & Live display |
| Camera Support | Support AHD 1080P cameras |
| AV Inputs | 6CH AV Inputs with 1080P/720P |
| Data Overlay | Date & Time Stamp, vehicle information, GPS information, CH number on the file |
| Map Tracking | Available |
| G-sensor | Applicable |
| Circuit Protection | Built-in circuit protection chip (over voltage & reversing voltage) |
| Power Design | Professional In-Vehicle power design, 9-36V DC wide voltage range |
| Password Protection | Support password protection function |
| Memory Function | With memory function |
| Auto Trigger | 6pcs auto trigger for each channel |
| Grid Line | With grid line |
