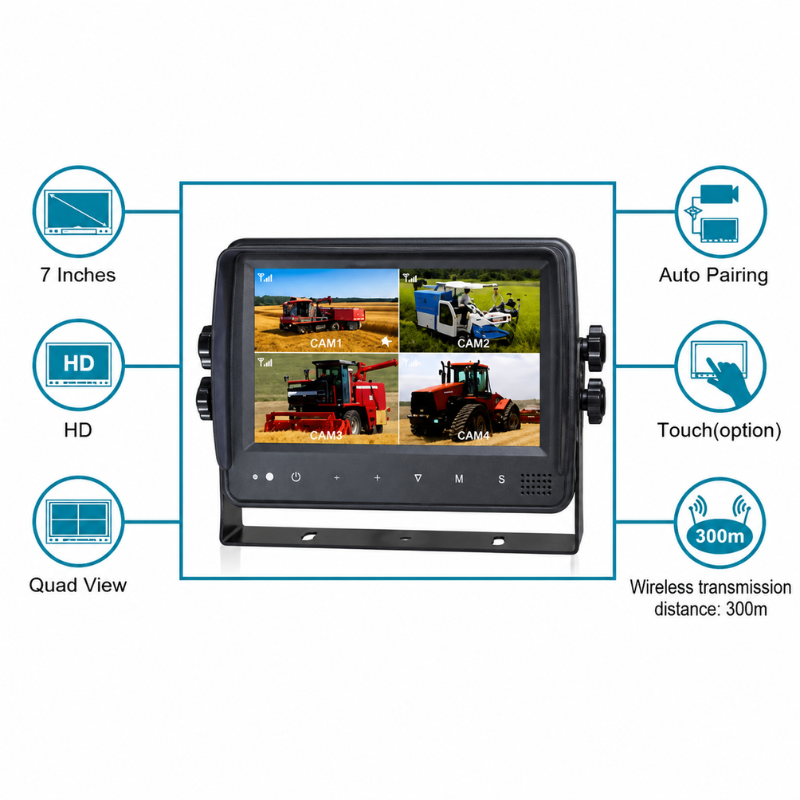

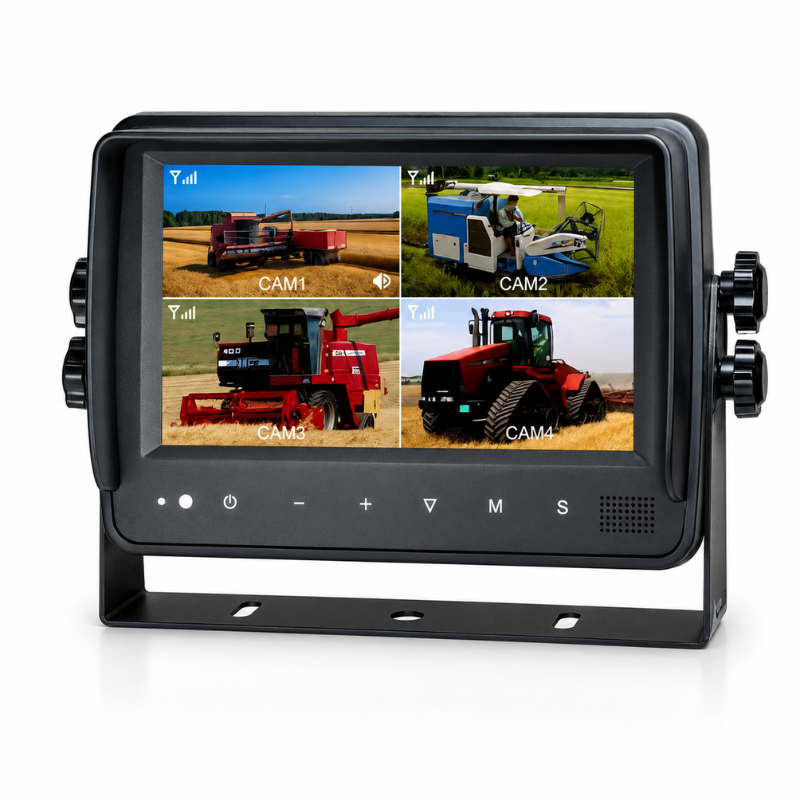

7” HD 2.4GHz Wireless Quad-View Monitor - Waterproof IP66, No Recording (IXU700125QC)
A 7-inch HD wireless quad-view vehicle monitor designed for forklifts, trucks, civil machinery and heavy-duty vehicle monitoring applications. The waterproof IP66 monitor supports multiple camera display modes and 1080P/720P camera input for safer operation and reduced blind spots.
Key Features
- Supports 4-channel wireless camera and wireless transmitter connection.
- IP66 waterproof monitor housing with built-in antenna for a clean, durable installation.
- Quad view, double view and single view modes help reduce blind spots.
- Manual and automatic pairing for quick setup after power connection.
- Supports 1080P/720P camera input with 5 trigger input wires.
- Auto-dim lighting control adjusts screen brightness in darker environments.
- Auto scan function with adjustable scan time from 5 to 60 seconds.
- Rear view parking lines can be configured for vehicle reversing use.
Specifications
| LCD Dimension | 7 inch |
| Resolution | 1024 x 3 (RGB) x 600 |
| Contrast | 700:1 |
| Brightness | 1000 cd/m² |
| Viewing Angle | U:85 / D:85, R/L:85 |
| Aspect Ratio | 16:9 |
| Channel | 4 channels |
| Operating Frequency | 2408MHz ~ 2478MHz ISM band |
| Receiving Sensitivity | -78dBm |
| Transmission Power | FCC≤26dBm, CE≤20dBm, MIC≤10dBm |
| Decompression Form | H.264 |
| Modulation | FHSS |
| Delay | 130ms |
| Transmission Distance | FCC≤300m, CE≤200m, MIC≤60m |
| System Format | PAL / NTSC |
| Power Supply | DC 10-32V |
| Power Consumption | Max. 10W |
| Loudspeaker | 1.5W/8Ω |
| Operating Temperature & Humidity | -20~+70ºC, RH90% MAX |
| Storage Temperature & Humidity | -30~+80ºC, RH90% MAX |
